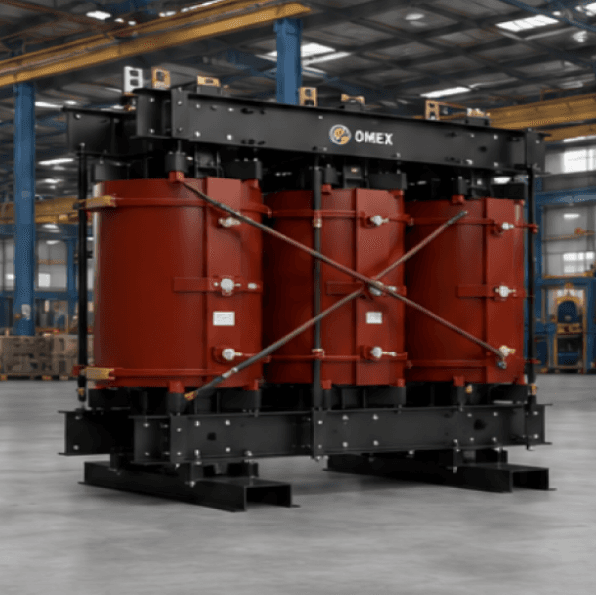

Medium Voltage Dry-Type Transformers

OMEX medium-voltage dry-type transformers are designed for demanding power distribution applications where safety, efficiency, and long-term reliability are essential. Built for commercial, industrial, utility support, data center, and infrastructure environments, these transformers provide a clean, low-maintenance solution without liquid-filled equipment requirements. Units can be configured to meet project-specific voltage, capacity, enclosure, cooling, and compliance needs, with engineering support available from specification review through delivery.

CHAT WITH SALES BUILD A QUOTE

Key Highlights

Commercial & Industrial Use
Low-Maintenance Dry-Type Design
Custom Voltage & Capacity Options
Engineering Support Included

Certified To

Project-Specific Engineering
Low Maintenance
Dry-Type Solution
Compliance Ready

Available Configurations

KVA	Catalog	H (in)	W (in)	D (in)	Weight	Wall Bracket
750	MDT15-0750-4160-480Y	78	60	46	2,450	223-888-00
1,000	MDT15-1000-4160-480Y	82	64	48	2,950	223-888-00
1,500	MDT15-1500-4160-480Y	86	72	54	3,800	223-888-00
2,000	MDT15-2000-4160-480Y	92	78	58	4,750	223-888-00
2,500	MDT15-2500-4160-480Y	98	84	62	5,700	223-888-00
3,000	MDT15-3000-4160-480Y	102	90	64	6,650	223-888-00
