Products / K-Rated Dry-Type Transformers

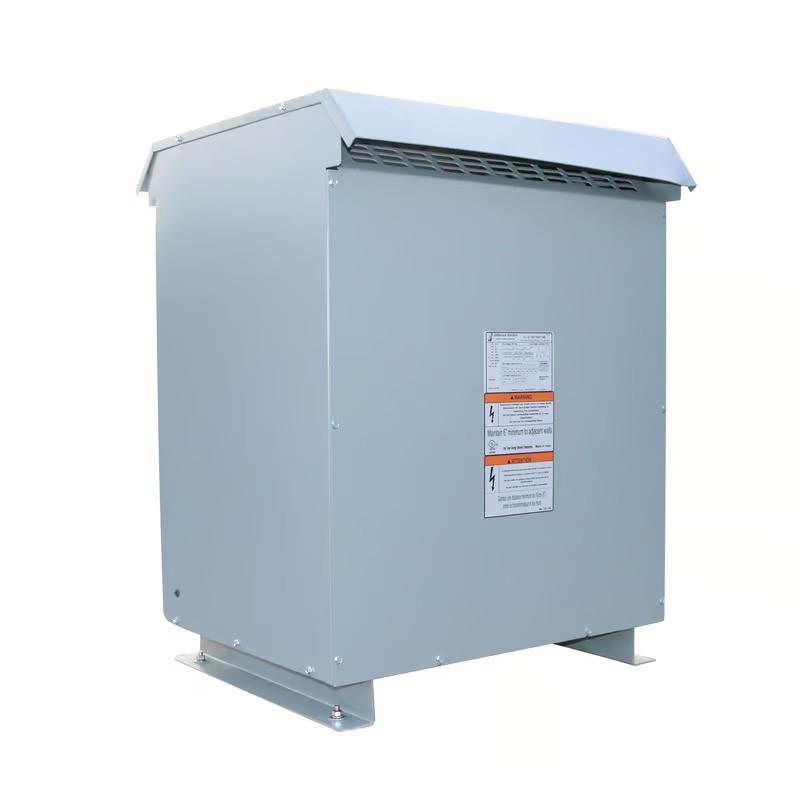

K-Rated Dry-Type Transformer
DOWNLOAD BROCHURE

K-Rated Dry-Type Transformers

OMEX K-rated dry-type transformers are engineered for facilities with harmonic-rich, non-linear loads such as UPS systems, variable frequency drives, servers, LED lighting, and electronic equipment. Available in selected single-phase and three-phase designs, these transformers provide added thermal capability for harmonic currents while supporting reliable power distribution, low maintenance, and application-specific voltage configurations.

K1, K4, K9 & K13
Single & Three Phase
Up to 1,000 kVA
220°C Insulation
CHAT WITH SALESBUILD A QUOTE

Overview

A transformer’s K-factor indicates its ability to withstand the additional heating produced by harmonic load currents. K-rated transformers do not remove harmonics; they are designed to operate reliably in their presence when properly selected for the load profile. OMEX offers K1 as the general-purpose baseline and K4, K9, and K13 configurations for progressively more demanding non-linear loads, with engineering support to match the transformer to the connected equipment.

Single-Phase and Three-Phase

Single-Phase

Availability
Selected K-factor and voltage configurations; engineering review required.
Common Secondary
120/240 V and project-specific outputs.
Best Fit
OMEX

OMEX Industries designs and manufactures high-performance transformers for industrial, commercial, and utility applications.

//Company
Why OmexOur CustomersOur PartnersCareersTools and Resources
//Resources
KVA CalculatorCredit ApplicationPolicies & DocumentsClient Portal
//Products
All ProductsLow Voltage & General PurposeMedium Voltage Dry-TypePad-Mounted TransformersPole-Mounted TransformersSubstation Transformers
//Our Location
OPEN IN MAP

© 2026 OMEX Industries LLC. All Rights Reserved.

|Privacy Policy
//Company
Why OmexOur CustomersOur PartnersCareersTools and Resources
//Resources
KVA CalculatorCredit ApplicationPolicies & DocumentsClient Portal
//Products
All ProductsLow Voltage & General PurposeMedium Voltage Dry-TypePad-Mounted TransformersPole-Mounted TransformersSubstation Transformers

Our Location

OMEX
Privacy Policy

© 2026 OMEX Industries LLC. All Rights Reserved.

Electronic equipment, controls, and selected non-linear single-phase loads.
Selection Note
K-factor must be based on the actual load profile.
Build A Quote

Three-Phase

Rating Range
15-1,000 kVA, depending on K-factor, voltage, and winding.
Common Examples
480Δ-208Y/120 V, 600Δ-208Y/120 V, and 480Δ-480Y/277 V.
Best Fit
Data centers, UPS systems, VFDs, healthcare, and commercial power distribution.
Selection Note
K4, K9, or K13 selected from the harmonic load profile.
Build A Quote

Technical Specifications

Rating Range15-1,000 kVA; availability varies by phase, voltage, winding, and K-factor.
K-Factor OptionsK1 baseline; K4, K9, and K13 harmonic-rated designs.
PhaseSelected single-phase and three-phase configurations.
Frequency60 Hz.
WindingsAluminum standard on many designs; copper available.
EnclosureNEMA 3R ventilated enclosure.
Insulation System220°C insulation class.
Temperature Rise150°C standard; alternate rises available by design.
ShieldingElectrostatic shield.
Maximum Ambient40°C.
EfficiencyMeets applicable U.S. DOE efficiency requirements when within regulated scope.
StandardsUL 1561 listing available by model; designed to applicable NEMA and DOE requirements.

Typical capabilities shown. Final ratings and features are subject to the approved project submittal.

Available Accessories & Options

Electrical / Performance

  • Copper windings
  • Alternate temperature-rise designs
  • Custom primary and secondary voltages
  • Thermal sensors and alarm contacts
  • Low-noise design options

Installation / Connection

  • Lug kits
  • Wall-mounting brackets where size permits
  • Vibration-isolation pads
  • Special terminal and neutral provisions
  • Project-specific labels and submittals

Applications

Data centers and server rooms
UPS systems and power distribution
Variable frequency drives
Healthcare and medical facilities
Office equipment and IT loads
Telecom and industrial automation
LED lighting and commercial buildings

Standards & Quality

Designed for non-linear loads and manufactured to applicable UL, NEMA, and U.S. Department of Energy requirements. Final K-factor selection, voltage configuration, listing, and project documentation are confirmed during application review and submittal approval.

Need Help Matching A K-Factor To Your Load?

Build a quote, talk to an application engineer, or review the product catalog for available K-rated options.
